Overview
Assumptions
Suitable for multi-tenant buildings, high-rise offices, and facilities requiring floor-level access control, targeting building managers, security teams, and building integrators.
Core Value
Solves the problem of unauthorized floor access in multi-tenant buildings and inability to restrict elevator destination floors.
Avoids unauthorized access to tenant floors, security incidents from unrestricted elevator access, and inability to manage floor-level permissions.
Provides floor-level access control through elevator systems, restricting unauthorized personnel from accessing secured floors.
Guide Structure
Product Overview
What is this solution?
Elevator access control extends the access control boundary from building entrances to individual floors. In multi-tenant buildings, this is essential for tenant privacy and security. The system integrates with elevator controllers to restrict which floors a person can access based on their credentials, creating a seamless but secure vertical access control layer.
Key Capabilities
Floor-level Permission Control
Restricts elevator destination floors based on user credentials and permissions.
Elevator Controller Integration
Direct integration with elevator management systems for floor access control.
Multi-tenant Floor Separation
Different tenants have access only to their authorized floors.
Visitor Floor Access Management
Temporary floor access for visitors with time-limited credentials.
Value by Role
Floor-level access control is a premium feature that supports tenant security requirements.
Floor access control provides privacy and security from other building occupants.
Elevator access records provide additional audit trail for floor-level incidents.
Elevator integration requires coordination with elevator manufacturers and building management.
Selection Method
Selection Framework
Use the following decision steps to determine if this solution fits your project. Each step narrows the selection scope and identifies key risk areas.
Elevator manufacturer compatibility must be verified before selecting elevator integration solution.
Floor access permissions must be coordinated with building entrance access permissions.
Visitor floor access requires integration with visitor management system.
When budget is limited, focus on high-security floors before implementing building-wide floor control.
Quick Decision Rules
If your project has more than 3 sites or 100+ door points, prioritize platform scalability over device cost.
If personnel turnover is high, ensure the permission revocation workflow is automated, not manual.
If the area is high-security (server room, pharmacy), require dual-factor authentication as a minimum.
If integration with HR or attendance systems is required, verify API compatibility before procurement.
Application Scenarios
Applicable Scenarios
Multi-tenant commercial buildings
High-rise offices with security-sensitive floors
Buildings with mixed public and private floors
Facilities requiring floor-level audit trails
Scenario Characteristics
Personnel Structure
Evaluate the complexity of personnel types, turnover rate, and permission granularity requirements.
Security Level
Determine authentication strength requirements based on asset value and regulatory requirements.
Growth Expectation
Consider future expansion, new sites, and system integration requirements in the selection.
Metrics & Acceptance
Key Performance Indicators
| Indicator | Minimum Standard | Enhanced Standard | Verification Method |
|---|---|---|---|
| Authentication Response Time | < 2 seconds | < 0.5 seconds | On-site timing test |
| False Rejection Rate (FRR) | < 1% | < 0.1% | 100-sample test |
| Offline Operation Duration | 4 hours | 72 hours | Power-off simulation |
| Permission Sync Latency | < 5 minutes | Real-time (< 30s) | Add/revoke timing |
| Event Log Retention | 90 days | 365 days+ | Platform query check |
| Emergency Release Time | < 10 seconds | Automatic on alarm | Fire alarm simulation |
Acceptance Checklist
Installation Conditions
Elevator manufacturer and model must be confirmed before integration planning.
Environment Requirements
Elevator cab installation must comply with elevator safety regulations.
Commissioning Requirements
Must verify floor permission control, visitor access, and emergency override with elevator manufacturer.
Operations Requirements
Establish procedures for floor permission changes when tenants move in or out.
Common Pitfalls
Elevator integration complexity is often underestimated; engage elevator manufacturer early.
Compare & Recommend
Tier Definition
Entry Tier
Target: Small single-site, low security requirement, limited budget
Risk: Limited scalability, manual management
Professional Tier
Target: Multi-site or medium-scale, compliance requirements, integration needs
Risk: Higher deployment complexity, requires professional integration
Enterprise Tier
Target: Large-scale, high security, multi-system integration, audit requirements
Risk: High investment, long implementation cycle
Recommended Combinations
Basic Combination
Required
- Elevator credential readers
- Elevator controller integration module
- Floor access management platform
- Building access control integration
Scenario: Single-site, standard security, < 50 door points
Risk: Difficult to expand later, manual permission management
Professional Combination
Required
- Elevator credential readers
- Elevator controller integration module
- Floor access management platform
- Building access control integration
Optional Add-ons
- Mobile credential for elevator access
- Visitor floor access management
- Elevator usage analytics
Scenario: Multi-site or compliance-required, 50–500 door points
Risk: Integration complexity, requires professional deployment
Enterprise Combination
Required
- Elevator credential readers
- Elevator controller integration module
- Floor access management platform
- Building access control integration
Optional Add-ons
- Mobile credential for elevator access
- Visitor floor access management
- Elevator usage analytics
- Emergency floor access override
- Multi-elevator coordination
Scenario: Large-scale, high security, full integration, 500+ door points
Risk: High investment, long implementation, requires experienced integrator
Compatibility & Integration
System Overview

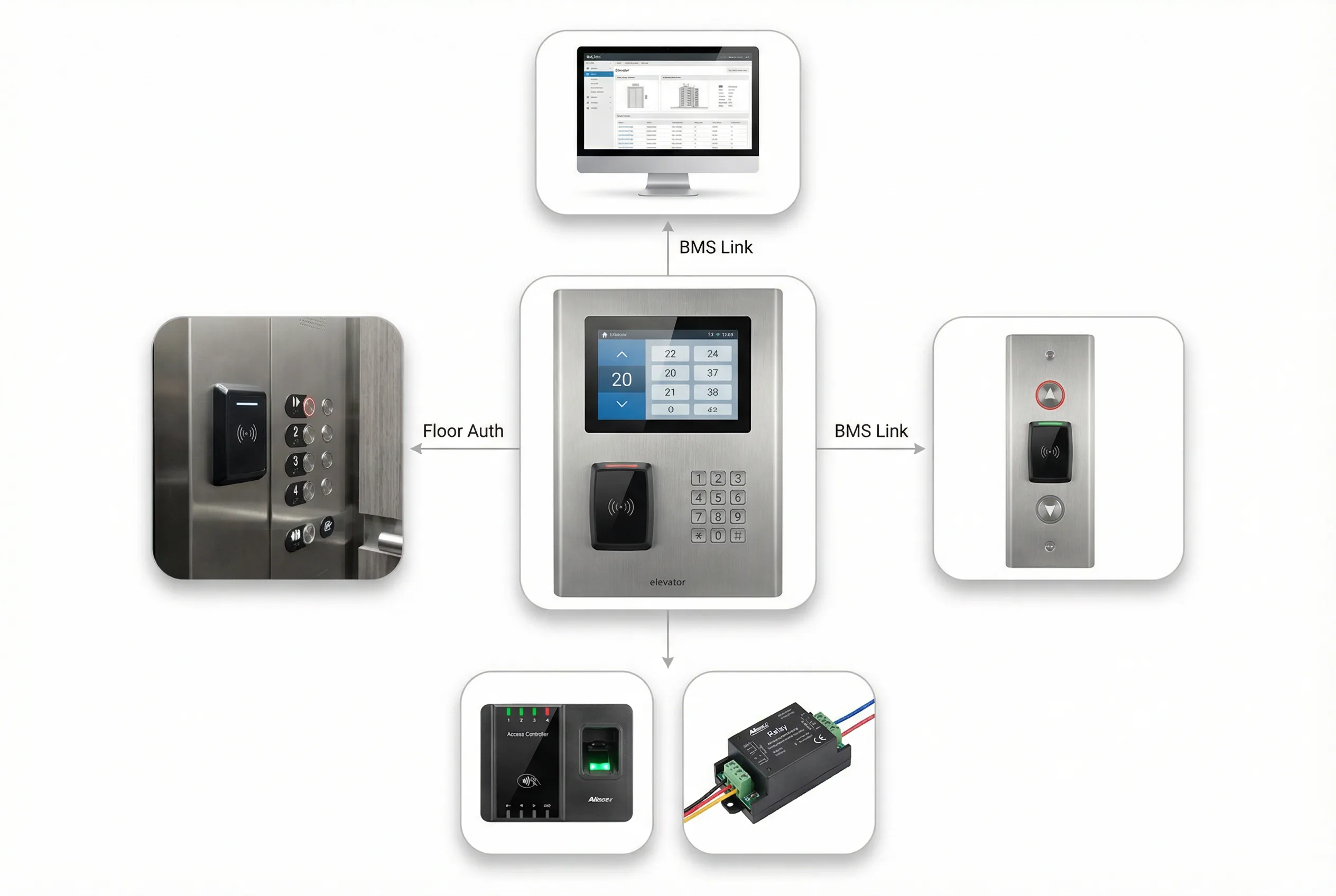

The system consists of elevator card readers or credential terminals in elevator cabs, elevator controller integration module, floor access management platform, and integration with building access control system.
Integration Objects
HR / Identity Management System
Sync personnel join/leave/transfer events
Video Surveillance (CCTV/VMS)
Link access events with video evidence
Visitor Management System
Automate temporary access credential issuance
Fire Alarm / BMS
Emergency release and evacuation linkage
Attendance System
Avoid duplicate card-swiping infrastructure
Elevator Control System
Extend access control to floor-level
Integration Risks & Mitigation
Protocol mismatch between controller and platform
Consequence: Events not reported, permissions not synced
Mitigation: Verify protocol compatibility before procurement; request test environment access
HR system API changes break permission sync
Consequence: Permission residuals after personnel departure
Mitigation: Use middleware or webhook-based integration; implement daily sync audit
Fire alarm release conflicts with access control logic
Consequence: Doors fail to open during emergency, evacuation blocked
Mitigation: Define fire release priority in system design; test linkage before go-live
Network latency causes offline controller permission lag
Consequence: Revoked credentials still grant access
Mitigation: Set offline permission cache TTL; implement emergency revocation mechanism
Installation & O&M
Installation Process
- 1
Users are enrolled with floor-level permissions based on their role and tenant.
- 2
User presents credential in elevator cab.
- 3
System verifies credential and enables only authorized floor buttons.
- 4
User travels to authorized floor; unauthorized floors remain locked.
- 5
All elevator access events are recorded for audit.
Pre-installation Risk Checklist
Confirm door frame material and lock mounting compatibility
Verify power supply capacity for all lock and controller loads
Check network connectivity and bandwidth at each door point
Confirm fire alarm integration protocol with fire system vendor
Verify cable routing path is free of interference sources
Confirm backup power (UPS/battery) runtime meets requirements
Validate reader mounting height and angle for user accessibility
Check environmental conditions (temperature, humidity, dust) for outdoor readers
Common Installation Errors
Mixing power and signal cables in the same conduit
Consequence: Electromagnetic interference causing reader malfunction
Correct Approach: Separate conduits for power and signal; maintain 30cm minimum distance
Installing readers in direct sunlight without weatherproofing
Consequence: Accelerated aging, biometric failure in high temperature
Correct Approach: Use IP65+ rated readers; add sun shade for outdoor installations
Not testing emergency release before handover
Consequence: Emergency release fails during real incident
Correct Approach: Mandatory fire alarm linkage test before project acceptance
O&M Monitoring & Maintenance
| Item | Frequency | Action |
|---|---|---|
| Door lock mechanical check | Monthly | Test lock/unlock force, check alignment |
| Controller communication status | Weekly | Check online status in platform dashboard |
| Backup power battery capacity | Quarterly | Simulate power outage, verify runtime |
| Permission audit | Monthly | Review active credentials vs. current personnel list |
| Firmware/software updates | Quarterly | Apply security patches; test in staging first |
